P+F UB1000 Types Proximity Sensor Switch Diffuse and Retroreflective Mode

Name: PF UB1000 Types Proximity Sensor Switch Diffuse and Retroreflective Mode
Brand: PEPPERL+FUCHS
Price: 1 USD

Buy cheap P+F UB1000 Types Proximity Sensor Switch Diffuse and Retroreflective Mode product

Brand Name : PEPPERL+FUCHS

Model Number : UB1000 Series

Certification : CE,UL

Place of Origin : Germany

MOQ : 1 PCS

Price : consult for best discount

Payment Terms : T/T , Western Union,Paypal,, MoneyGram,, L/C

Supply Ability : 10-500 Pcs/month

Delivery Time : 2-15 days

Packaging Details : P+F original package

Types : Ultrasonic Sensor

Sensing range : 70 to 1000 mm

Dead band : 0 to 70 mm

No-load supply current : ≤ 50 mA

Common mode operation : max. 40 Hz

Condition : New and original

Contact Now

P+F UB1000 Types Proximity Sensor Switch Diffuse and Retroreflective Mode Ultrasonic Sensor

Application:

P+F UB1000 Ultrasonic sensors are most commonly used in the diffuse mode. A single ultrasonic transducer is used as both emitter and receiver and is typically contained in the same housing as the evaluation electronics.

To reliably detect difficult objects, the majority of our diffuse mode sensors can be converted to retroreflective operation via software parameterization. Some ultrasonic sensors are supplied as retroreflective sensors from the outset.

Technical data of UB1000-18GM75-E5-V15

Product Description
Single head system

General specifications
Sensing range		70 ... 1000 mm
Adjustment range		90 ... 1000 mm
Dead band		0 ... 70 mm
Standard target plate		100 mm x 100 mm
Transducer frequency		approx. 255 kHz
Response delay		approx. 125 ms
Indicators/operating means
LED yellow		indication of the switching state flashing: program function object detected
LED red		solid red: Error red, flashing: program function, object not detected
Electrical specifications
Operating voltage		10 ... 30 V DC , ripple 10 %_SS
No-load supply current		≤ 50 mA
Input/Output
Synchronization		1 synchronous connection, bi-directional 0-level: -U_B...+1 V 1-level: +4 V...+U_B input impedance: > 12 kΩ synchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms
Synchronization frequency
	Common mode operation	max. 40 Hz
	Multiplex operation	≤ 40 Hz /n, n = number of sensors
Input
Input type		1 program input, operating range 1: -U_B ... +1 V, operating range 2: +4 V ... +U_B input impedance: > 4.7 kΩ; program pulse: ≥ 1 s
Output
Output type		1 switch output PNP Normally open/closed , programmable
Rated operating current		200 mA , short-circuit/overload protected
Voltage drop		≤ 3 V
Repeat accuracy		≤ 1 %
Switching frequency		max. 3 Hz
Range hysteresis		1 % of the set operating distance
Temperature influence		± 1.5 % of full-scale value

P+F UB1000 Types Proximity Sensor Switch Diffuse and Retroreflective Mode

Product Tags:

inductive proximity sensor

metal proximity sensor

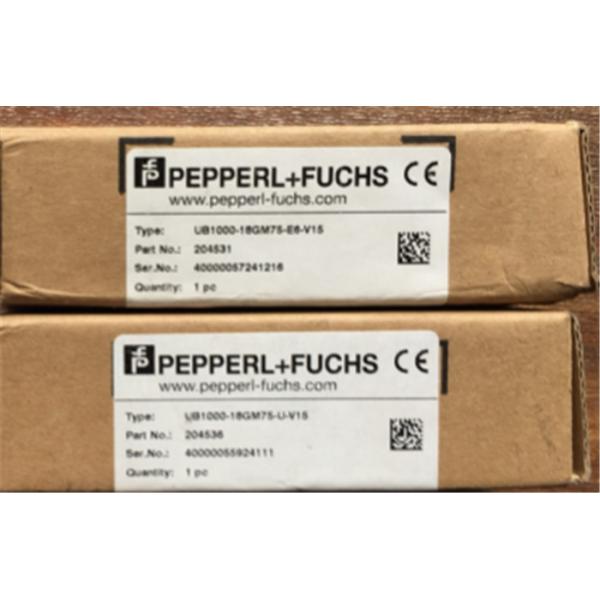

P+F UB1000 Types Proximity Sensor Switch Diffuse and Retroreflective Mode Images
